Webhooks

A webhook is a request the phone sends to an address of your choice every time something happens to a call. It is how a CRM can open the customer's card before the second ring, log a call when it ends, or light a lamp on a wallboard. A webhook needs no inbound firewall rules: the phone calls out to you. Because the requests are sent from the workstation, the address only has to be reachable from that computer — an internal http://crm.local/calls works as well as a public HTTPS address.

Webhooks are off after installation, until you turn them on. They work alongside the local REST API: an event says that something changed, the API gives the current details.

Turning them on

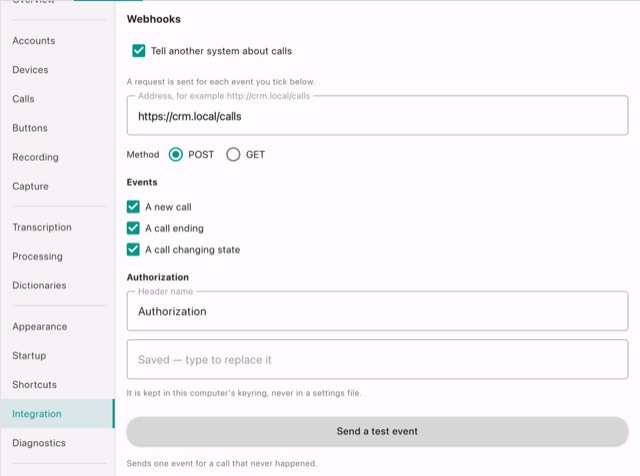

Open Settings → Integration. Webhooks is the first section of the tab.

Tick Tell another system about calls. A request is sent for each event you tick below.
Enter the Address that should receive the events, for example https://crm.local/calls.
Choose the Method: POST (the default) or GET.
Under Events tick what to send: A new call, A call ending, A call changing state.
Optionally, under Authorization, set a header that your receiver can check: a Header name (Authorization is suggested) and a Header value. The value is kept in the computer's keyring, never in a settings file; once saved, the field shows Saved — type to replace it.
Press Send a test event to see that it arrives. It sends one event for a call that never happened, with the same headers as a real one. Log the raw request and build your receiver against what your version actually sends.

The part of the program that sends the requests is the Integration module; it can be switched off in Modules.

The events

Ticked as	Event	Sent when
A new call	`call-started`	An incoming call starts ringing or an outgoing call is placed.
A call changing state	`call-state-changed`	The call's `state` changes: it is answered, put on hold or resumed by either side, or joins or leaves a conference. Muting does not send it.
A call ending	`call-ended`	The call has ended.

Each event can be ticked on its own. A screen pop needs only the first; a call log only the last. call-started is sent first and should be handled quickly.

What the request looks like

With the address https://crm.local/calls and the method POST, the phone sends this. The body is JSON, and the header is the one you set under Authorization:

POST /calls HTTP/1.1
Host: crm.local
Authorization: Bearer my-secret-token
Content-Type: application/json
User-Agent: ai-softphone/1.0.1-macos-dmg

The User-Agent carries the version of the program and the way it was installed.

An incoming call, event by event

A call from extension 1020 to the account 1002 rings, is answered, and is hung up by the person who answered it four seconds later. With all three events ticked, the receiver gets three requests, one after another. They all carry the same id and seance_id.

1. It rings: `call-started`

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791021263333",
  "callstate_ts": "1791021263333",
  "dialed": "",
  "direction": "in",
  "duration_s": "0",
  "event": "call-started",
  "event_ts": "1791021263333",
  "id": "5b1c0a6e-0c7e-4c53-9f57-2c4f1f0d6a11",
  "name": "Jack Russel",
  "number": "1020",
  "reason": "none",
  "seance_id": "e3f0b9f4-1a2c-4d8b-9c35-6a7b8c9d0e1f",
  "state": "ringing-in",
  "uri": "sip:1020@pbx.example.com"
}

This is the moment to look the caller up by number and show the customer's card. state is ringing-in and duration_s is 0.

2. It is answered: `call-state-changed`

About three seconds later:

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791021263333",
  "callstate_ts": "1791021266126",
  "dialed": "",
  "direction": "in",
  "duration_s": "0",
  "event": "call-state-changed",
  "event_ts": "1791021266131",
  "id": "5b1c0a6e-0c7e-4c53-9f57-2c4f1f0d6a11",
  "name": "Jack Russel",
  "number": "1020",
  "reason": "none",
  "seance_id": "e3f0b9f4-1a2c-4d8b-9c35-6a7b8c9d0e1f",
  "state": "active",
  "uri": "sip:1020@pbx.example.com"
}

state is now active, and callstate_ts has moved on to the moment of the change while callstart_ts stays where it was.

3. It ends: `call-ended`

Four seconds of conversation later:

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791021263333",
  "callstate_ts": "1791021270400",
  "dialed": "",
  "direction": "in",
  "duration_s": "4",
  "event": "call-ended",
  "event_ts": "1791021270406",
  "id": "5b1c0a6e-0c7e-4c53-9f57-2c4f1f0d6a11",
  "name": "Jack Russel",
  "number": "1020",
  "reason": "local-hangup",
  "seance_id": "e3f0b9f4-1a2c-4d8b-9c35-6a7b8c9d0e1f",
  "state": "ended",
  "uri": "sip:1020@pbx.example.com"
}

state is ended, duration_s is the length of the conversation, and reason says who ended it: local-hangup here, because the person at this phone hung up.

An outgoing call, event by event

The same extension is called from the account 1002: the person dials 1020, the phone rings, the other side answers, talks for seven seconds and hangs up. The receiver gets four requests, one more than for an incoming call, because an outgoing call has a state of its own while it is ringing at the other end.

1. It is dialled: `call-started`

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791023883072",
  "callstate_ts": "1791023883072",
  "dialed": "1020",
  "direction": "out",
  "duration_s": "0",
  "event": "call-started",
  "event_ts": "1791023883072",
  "id": "9a3e5c71-2d48-4b6f-8e10-3c5f7a1b9d24",
  "name": "",
  "number": "1020",
  "reason": "none",
  "seance_id": "c47d2e90-6b13-4f85-a2d7-18e9b0f35a6c",
  "state": "dialing",
  "uri": "sip:1020@pbx.example.com:5060"
}

direction is out, state is dialing, and dialed holds the number as it was dialled. The phone does not know the name of the other party yet, so name is empty.

2. It rings at the other end: `call-state-changed`

Half a second later:

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791023883072",
  "callstate_ts": "1791023883591",
  "dialed": "1020",
  "direction": "out",
  "duration_s": "0",
  "event": "call-state-changed",
  "event_ts": "1791023883591",
  "id": "9a3e5c71-2d48-4b6f-8e10-3c5f7a1b9d24",
  "name": "",
  "number": "1020",
  "reason": "none",
  "seance_id": "c47d2e90-6b13-4f85-a2d7-18e9b0f35a6c",
  "state": "ringing-out",
  "uri": "sip:1020@pbx.example.com:5060"
}

state is ringing-out.

3. The other side answers: `call-state-changed`

Four seconds after that:

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791023883072",
  "callstate_ts": "1791023887072",
  "dialed": "1020",
  "direction": "out",
  "duration_s": "0",
  "event": "call-state-changed",
  "event_ts": "1791023887076",
  "id": "9a3e5c71-2d48-4b6f-8e10-3c5f7a1b9d24",
  "name": "Jack Russel",
  "number": "1020",
  "reason": "none",
  "seance_id": "c47d2e90-6b13-4f85-a2d7-18e9b0f35a6c",
  "state": "active",
  "uri": "sip:1020@pbx.example.com"
}

state is active. The name is now filled in, and the uri is the address of the party as the answer reported it. duration_s is still 0: it counts from this moment.

4. It ends: `call-ended`

Seven seconds later the other side hangs up:

{
  "account": "1002@pbx.example.com",
  "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90",
  "answered_by": "no",
  "callstart_ts": "1791023883072",
  "callstate_ts": "1791023894781",
  "dialed": "1020",
  "direction": "out",
  "duration_s": "7",
  "event": "call-ended",
  "event_ts": "1791023894789",
  "id": "9a3e5c71-2d48-4b6f-8e10-3c5f7a1b9d24",
  "name": "Jack Russel",
  "number": "1020",
  "reason": "remote-hangup",
  "seance_id": "c47d2e90-6b13-4f85-a2d7-18e9b0f35a6c",
  "state": "ended",
  "uri": "sip:1020@pbx.example.com"
}

duration_s is 7, and reason is remote-hangup, because the other side ended the call. When you hang up yourself, it is local-hangup, as in the incoming call above.

The states, side by side

	Incoming call	Outgoing call
`call-started`	`ringing-in`	`dialing`
`call-state-changed`	`active`	`ringing-out`, then `active`
`call-ended`	`ended`	`ended`

The fields

Every value is a string, numbers and timestamps included: "duration_s": "42". A moment that is not known is an empty string. The names follow one convention: _id is an identifier, _ts is Unix time in milliseconds (UTC), _s is a length in seconds — the same as in the REST API, where the values are JSON numbers.

Field	Meaning
`event`	`call-started`, `call-state-changed` or `call-ended`.
`id`	The call: the same UUID as in `GET /calls` and `/calls/{id}/…`, and the same in every event of the call.
`seance_id`	The conversation the call belongs to; see below.
`direction`	`in` or `out`.
`state`	The same values as in `GET /calls`: `dialing`, `ringing-out`, `ringing-in`, `active`, `hold` (held by this phone), `onhold` (held by the other party), `conference` or `ended`.
`number`	The other party's number. Match your CRM records on this field.
`name`	The other party's name, from Contacts; it may be empty, and may be filled in later in the call, as in the outgoing call above.
`uri`	The other party's SIP address.
`dialed`	The digits dialled, for an outgoing call; empty for an incoming call.
`account`, `account_id`	The line the call is on: `username@server`, and the identifier from `GET /accounts`.
`event_ts`	When the event happened.
`callstart_ts`	When the phone first learned of the call.
`callstate_ts`	When the call entered its current `state`.
`duration_s`	Talk time in seconds, from answer to hang-up. Set on `call-ended` for an answered call; `0` otherwise.
`reason`	How the call ended: `local-hangup`, `remote-hangup`, `busy`, `no-answer`, `cancelled`…; `none` until then.
`answered_by`	`no` if a person answered the call; otherwise what answered it.

One conversation across transfers

seance_id groups the calls that make up one conversation. A call placed or received from scratch starts a new one. A call created by a transfer, a call that replaces another, a consultation about a call and every call joined into a conference keep the seance_id of the call they came from.

Between phones it travels in the SIP header X-Seance-Id: when a call is transferred to a colleague who also uses AI Softphone, and the PBX passes the header on, both workstations report the same seance_id.

GET instead of POST

GET is for receivers that cannot take a request body, such as an older CRM or a script bridge. The same fields are then sent as query parameters.

With GET the address can be a template: each [field] is replaced by the value of that field, percent-encoded. For example:

https://crm.local/pop?phone=[number]&call=[id]

The placeholders use the field names above. Templates saved with the earlier names ([accountId], [at], [duration], [answeredBy], [seanceId]) keep working.

How the events are delivered

Behaviour	What it means for you
Events are queued, not sent from the call itself	A slow receiver never delays ringing, calls or transfers.
A full queue drops events	If your receiver stops answering, events are lost but the telephone keeps working. Watch `webhooks_dropped_total`.
Refused and unreachable deliveries are counted	`webhooks_failed_total` rising while `webhooks_delivered_total` stands still points at the receiver.
Events arrive in order	Call started, then the state changes, then call ended. To order events you have stored, use `callstate_ts`, not the time they arrived.
At least once	The same event can come twice. `id`, `event` and `callstate_ts` together identify an event: make your handler skip one it has seen.

Receiving the events

The one rule for a receiver: answer 200 at once, and do the work afterwards. A slow receiver does not slow the phone down, but it fills the queue, and a full queue drops events.

For example, in Node.js with Express:

const express = require("express");
const app = express();
app.use(express.json());

const SECRET = process.env.SOFTPHONE_SECRET;   // the Header value from Settings

app.all("/calls", (req, res) => {
  if (req.get("Authorization") !== SECRET) return res.sendStatus(401);

  // POST sends a JSON body, GET sends query parameters
  const call = Object.keys(req.body || {}).length ? req.body : req.query;
  res.sendStatus(200);                          // answer first

  setImmediate(() => {                          // then do the work
    if (call.event === "call-started" && call.direction === "in") {
      openCustomerCard(call.number, call.name); // your code
    }
    if (call.event === "call-ended") {
      logCall(call.id, Number(call.duration_s), call.reason); // your code
    }
  });
});

app.listen(8080);

To log the outcome of a call — answered, missed, declined — take the entry with the same seance_id and number from GET /history?limit=20 of the REST API. When your service starts again after a pause, read GET /history?limit=200 and store what you missed: webhooks for real time, the history to fill the gaps.

To see the requests before the CRM is ready, point Address at an online request inspector and press Send a test event.

When nothing arrives

Symptom	What to check
No webhooks at all	Press Send a test event. If it arrives, the events you need are not ticked; if not, the address is wrong or not reachable from the workstation.
`webhooks_failed_total` keeps rising	The receiver refuses the requests or cannot be reached. Check its log, and whether it answers a simple request from the workstation.
`webhooks_dropped_total` is above zero	The receiver was too slow for too long and the queue filled up. Answer `200` first, then process.
The same event twice	Expected with at-least-once delivery. Treat events with the same `id`, `event` and `callstate_ts` as one.
