Local REST API

AI Softphone has a REST API for CTI integration: a program on the same computer can place and control calls, read contacts, call history and SIP accounts, and watch the calls in progress. No SDK, no cloud intermediary and no listener exposed to the network. Requests and answers are JSON, so curl or any HTTP client is enough.

The API is off after installation; nothing listens until you turn it on. It then listens on the loopback interface only — a small web interface that answers only to this computer — and cannot be reached from the office network, a VPN or another machine.

Use the API when your program needs data from the phone or has to control a call. Use webhooks when it has to react to calls as they happen, without polling. Most integrations use both; they are independent of each other.

Turning it on

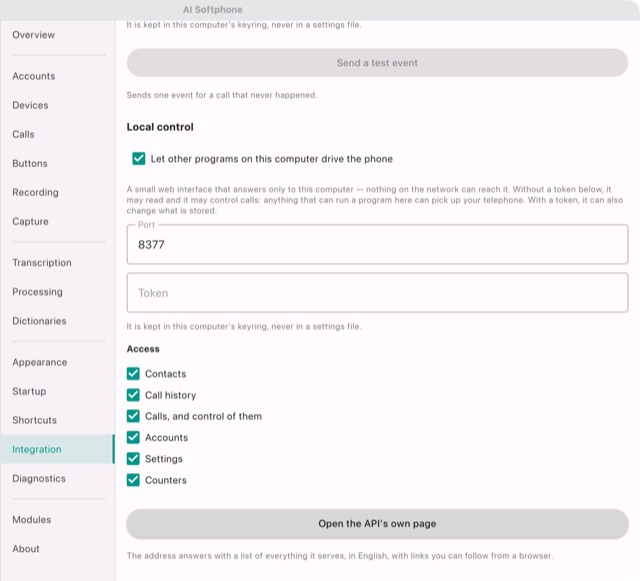

Open Settings → Integration and go to Local control.

1. Turn on Let other programs on this computer drive the phone. The server starts at once.
2. Keep the default Port, 8377, unless another program already uses it.
3. Optionally set a Token. Once saved, the field shows Saved — type to replace it.
4. Under Access, choose the groups to open: Contacts, Call history, Calls, and control of them, Accounts, Settings, Counters (the metrics). A group that is off is not filtered but not served at all.
5. Test it: curl http://127.0.0.1:8377/accounts. If the answer is JSON, the API works.

No separate service is installed and no restart is needed. The part of the program that does this can be switched off in Modules (Integration).

The API's own page

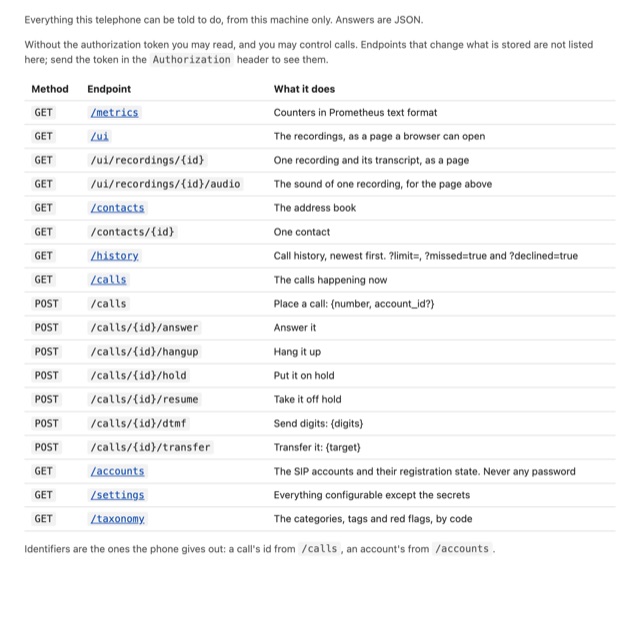

Open the API's own page opens http://127.0.0.1:8377 in a browser. The address answers with a list of everything it serves, in English; the addresses that read something are links you can follow.

Access and the token

What a program may do depends on whether it changes stored data, not on whether it reads:

• Without a token, any program on the computer may read everything in the enabled groups and control calls: place, answer, hang up, hold, resume, transfer and send DTMF.
• With the token in the Authorization header, it may also use the endpoints that change what is stored. Without the token those endpoints are neither served nor listed on the API's own page.

The token is kept in the computer's keyring, not in the settings file, and is never returned by /settings.

caution

Without a token, any program running on this computer can control the phone, answering calls included. On a personal workstation that is usually acceptable. On a shared or managed machine, set a token and handle it like any other password.

Endpoints

The base address is http://127.0.0.1:8377. The endpoints below need no token.

Method	Path	Does
GET	/metrics	The counters, in Prometheus format.
GET	/ui	The list of recordings, as an HTML page.
GET	/ui/recordings/{id}	A recording with its transcript, as an HTML page.
GET	/ui/recordings/{id}/audio	The audio for the page above.
GET	/contacts	The contacts.
GET	/contacts/{id}	A single contact.
GET	/history	The call log, newest first. Accepts ?limit=, ?missed=true and ?declined=true.
GET	/calls	The calls in progress.
POST	/calls	Places a call: {"number": "...", "account_id": "..."}.
POST	/calls/{id}/answer	Answers a call.
POST	/calls/{id}/hangup	Hangs a call up.
POST	/calls/{id}/hold	Puts a call on hold.
POST	/calls/{id}/resume	Takes it off hold.
POST	/calls/{id}/dtmf	Sends tones: {"digits": "..."}.
POST	/calls/{id}/transfer	Transfers the call: {"target": "..."}.
GET	/accounts	The SIP accounts and their registration state. Never a password.
GET	/settings	The whole configuration, without the secrets.
GET	/taxonomy	Categories, tags and red flags, with their codes.

Every identifier is a UUID issued by the phone: a call id comes from /calls or from the answer to POST /calls, an account id from /accounts.

Field names are in snake_case and the ending tells the type: _id is a reference to a UUID, _ts is a moment in Unix milliseconds (UTC), _s is a length in seconds. The same holds for webhooks; only /settings keeps names of its own. In the REST API these values are JSON numbers, and a moment that is not known is null.

Example: placing a call

POST /calls places an outgoing call. The body is JSON with the number to dial and, optionally, the account_id of the account to call from:

curl --location 'http://127.0.0.1:8377/calls' \
--header 'Content-Type: application/json' \
--data '{
    "number": "1020",
    "account_id": "0d7a4c52-6f2e-4a51-8f46-7d9a3e1b2c90"
}'

The answer is the identifier of the new call:

{ "id": "9a3e5c71-2d48-4b6f-8e10-3c5f7a1b9d24" }

• number is required. Without it the answer is 400 {"error":"a call needs a number"} and nothing is dialled.
• The number is completed on the chosen account the way the dialler completes it: 1020 is sent as sip:1020@pbx.example.com. POST /calls/{id}/transfer completes its target the same way; a target that already has a scheme or an @ is sent as it is.
• account_id is optional; take it from GET /accounts. Without it the call goes out on the account selected in the main window.
• Use the id in /calls/{id}/…: hangup, hold, resume, dtmf and transfer. Webhooks of this call carry the same id.

From a web page: click to call

A page that calls 127.0.0.1 reaches the computer the browser runs on — the same one the phone runs on — so a click-to-call button in a CRM needs no server of its own:

async function dial(number) {
  const r = await fetch("http://127.0.0.1:8377/calls", {
    method: "POST",
    headers: { "Content-Type": "application/json" },
    body: JSON.stringify({ number }),
  });
  if (!r.ok) console.warn("softphone:", (await r.json()).error);
}

What the answers contain

Calls in progress: GET /calls

Each call has its id, seance_id, account_id, direction, state, number, name, uri, dialed, muted, event_ts, callstart_ts and callstate_ts.

• state is dialing, ringing-out, ringing-in, active, hold (held by this phone), onhold (held by the other party), conference or ended. When more than one applies, conference wins over hold, and hold over onhold.
• muted says whether the microphone is muted on the call; muting does not change state.
• seance_id is the conversation: calls linked by a transfer, a consultation or a conference share it.
• event_ts is when the answer was made. Compare it with callstate_ts to see how long the call has been in its state, without relying on your own clock.

Accounts: GET /accounts

Each account has its id (the account_id everywhere else), its settings — transport (udp, tcp or tls), port, registrar, outbound_proxy, expiry_s and others — whether it is enabled, and its state on the PBX: registered while the line is up. Passwords are never included.

Call history: GET /history

Newest first, 100 entries unless ?limit= says otherwise. ?missed=true returns missed calls only, ?declined=true only the calls this phone declined.

Field	Meaning
id	The history entry's own identifier. It is not the call id of /calls and of webhooks; seance_id links the two.
outcome	The main classification: answered, missed, declined or failed.
answered	true or false.
duration_s	0 for a call that was never connected.
number, uri	The other party, as a number and as the SIP address.
name	From Contacts if the number is known, otherwise empty. Match on number, not on this.
dialed	The digits dialled, for an outgoing call; empty for an incoming one.
account, account_id	The line the call was on.
reason	How it ended: local-hangup, remote-hangup, cancelled…
answered_by	no if a person answered it; otherwise what answered the call.

Contacts: GET /contacts

Each contact has its id, name, number and the line it belongs to, account_id and account; an empty account means the contact is not tied to a line.

Recordings

Recordings and transcripts are not given out as JSON. The API serves them as HTML pages, /ui and /ui/recordings/{id}: link to these pages from your CRM instead of moving audio around. The link opens on the computer that keeps the recording, and the audio never leaves it.

Taxonomy and settings

Each entry of /taxonomy has a constant code, a title and a description in the interface language, a kind (category, tag or red_flag) and, for red flags, a severity. Match on code, never on title: titles come in the language the phone is set to. An entry with retired: true is kept so that older calls still resolve; it is no longer given to new calls. Load the taxonomy once at start-up to map the phone's words to your own fields.

/settings returns the configuration except the secrets: audio devices and volumes, codec priority, appearance and language, startup, hotkeys, the diagnostics level and the state of both integrations — useful for a support tool that has to check a workstation without sharing the screen. api.disabled lists the access groups that are off and webhooks.silenced the events that are off; empty lists mean everything is on. It never includes the SIP password, the API token or the webhook header value.

Errors

Every error is JSON with a single error key, meant for people, not for parsing.

Status	Body	Meaning
404	{"error":"no such endpoint"}	The path does not exist, or its access group is off; both give the same answer on purpose.
404	{"error":"no contact with that id"}	The path is right, the identifier is not.
400	{"error":"no call with that id"}	The call has ended, or never existed.
400	{"error":"a call needs a number"}	POST /calls without a number. Nothing was dialled.
400	{"error":"no digits to send"}	POST /calls/{id}/dtmf without digits.
400	{"error":"a transfer needs a target"}	POST /calls/{id}/transfer without a target.
400	{"error":"the account this call is on is no longer set up"}	The call's account was removed during the call, so the target cannot be completed. Nothing was sent to the PBX.

Refused requests are counted in api_requests_refused_total, so an integration that fails quietly shows in the metrics, not only in your own logs.

Metrics

GET /metrics returns every counter of the phone, each with a help text. Scrape it with Prometheus or read it by hand.

Counter	Counts
calls_incoming_total	Incoming calls received.
calls_outgoing_total	Outgoing calls placed.
calls_answered_total	Calls that were answered.
calls_missed_total	Incoming calls that were not answered.
calls_declined_total	Calls rejected here or by the other side.
calls_failed_total	Calls that could not be set up.
registrations_succeeded_total	Successful SIP registrations.
registrations_failed_total	SIP registrations refused or timed out.
webhooks_delivered_total	Webhooks the receiver accepted.
webhooks_failed_total	Webhooks refused or not delivered.
webhooks_dropped_total	Webhooks thrown away because the queue was full.
api_requests_total	Requests handled by the API.
api_requests_refused_total	Refused requests: wrong token, group off or unknown path.

Updating an older integration

Earlier versions used camelCase names and short identifiers. accountId is now account_id, startedAt is callstart_ts, durationSeconds is duration_s, answeredBy is answered_by, and the webhook field at is event_ts. Calls and accounts are identified by UUID only: runtimeId and identifiers such as call-3 or account-2 are no longer returned or accepted.

When it does not work

Symptom	What to check
Connection refused on 127.0.0.1:8377	Local control is off, the phone is not running, or the port was changed.
404 {"error":"no such endpoint"} for a path on this page	Its access group is off.
Reading works, writing is refused	The endpoints that change stored data need the token in the Authorization header.
Category titles are not in English	Titles follow the interface language. Match on code from /taxonomy.
accountId, startedAt or at are missing	The integration was written for the earlier names; see above.

For a problem with registration or a call itself, open Diagnostics.
